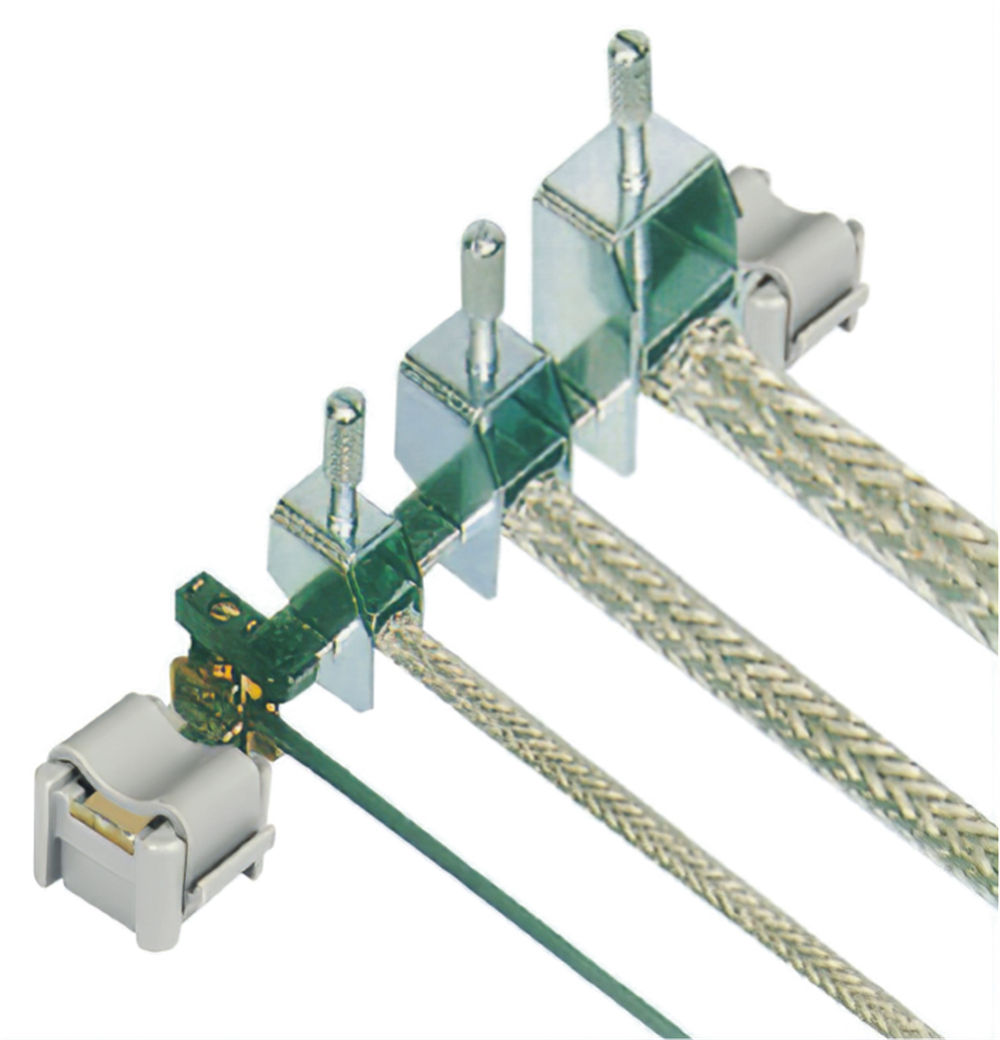

Install two or more shielding brackets TAB-SK depending on the length of the terminal strip. These brackets use a front-mounted busbar to connect electrically and mechanically to the rail, thereby connecting to the equipment housing ground. The installation of shielding terminals is very simple; after wiring, just clip the TSK terminal onto the busbar.
The force applied to the cable can be adjusted via an elastic pressure block, thereby ensuring optimal contact with the busbar at all times. If the cable shielding is not grounded in front of the terminal strip but elsewhere in the electrical cabinet, it is recommended to use the shielding support AB/SS. If it is necessary to ground the cable shielding at a specific point through the equipment housing, this shielding support is also suitable for the insulated installation of the busbar.
| Description | Model | Material Code | Wiring Data | Number of Packages | |

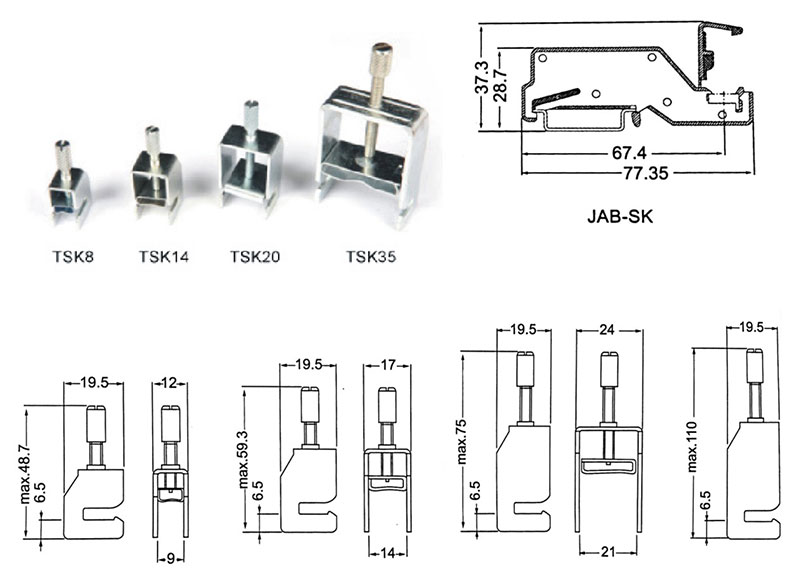

| Shielded Terminal: Used to clamp the cable shield on the busbar Shielding Bracket: Can be mounted on  type rails,suitable for 10x3mm busbars | TSK 8 | 2011001 | Φ8mm | 10 | |
| TSK 14 | 2011002 | Φ14mm | 10 | ||
| TSK 20 | 2011003 | Φ20mm | 10 | ||
| TSK 35 | 2011004 | Φ35mm | 10 | ||
| TAB-SK | 2011005 | 10 | |||
| N-Busbar: 10x3mm, 1m long, made of copper, tin-plated |  | NLS-CU 3/10 | 2011010 | Imax:140A | 10 |
| Shielding Support: Made of insulating material, with fixing screws, suitable for 10x3mm or 6x6 busbars |  | AB/SS | 2011011 | 10 | |
| AB/2SS | 2011012 | ||||
