Mounting rails are designed according to the latest European standards EN50022, EN50035, and EN50045.
Special attention is given to dimensional accuracy, strict tolerances, and good surface finish. Additionally, the steel rails are galvanized.
For easy installation and drilling, a line is printed in the center of the rail. Aluminum and copper rails also have this line.
All mounting rails can be supplied in different lengths and can have round holes, long holes, or slots as required.
According to DIN VDE 0611 Part 3, steel mounting rails are allowed to be used as grounding busbars (PE function), but they do not have a neutral (PEN) function.

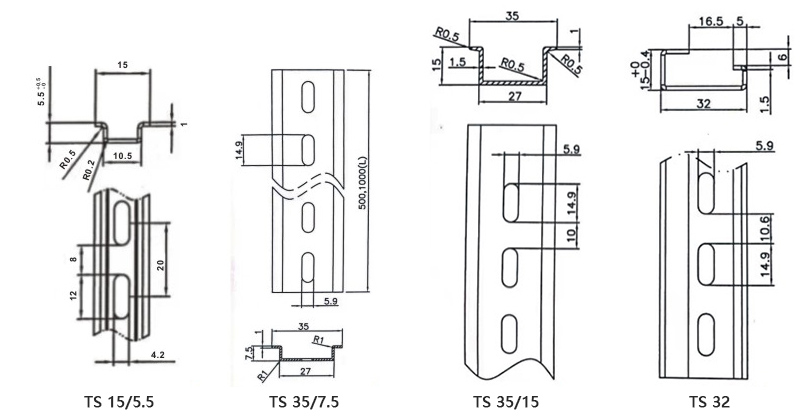

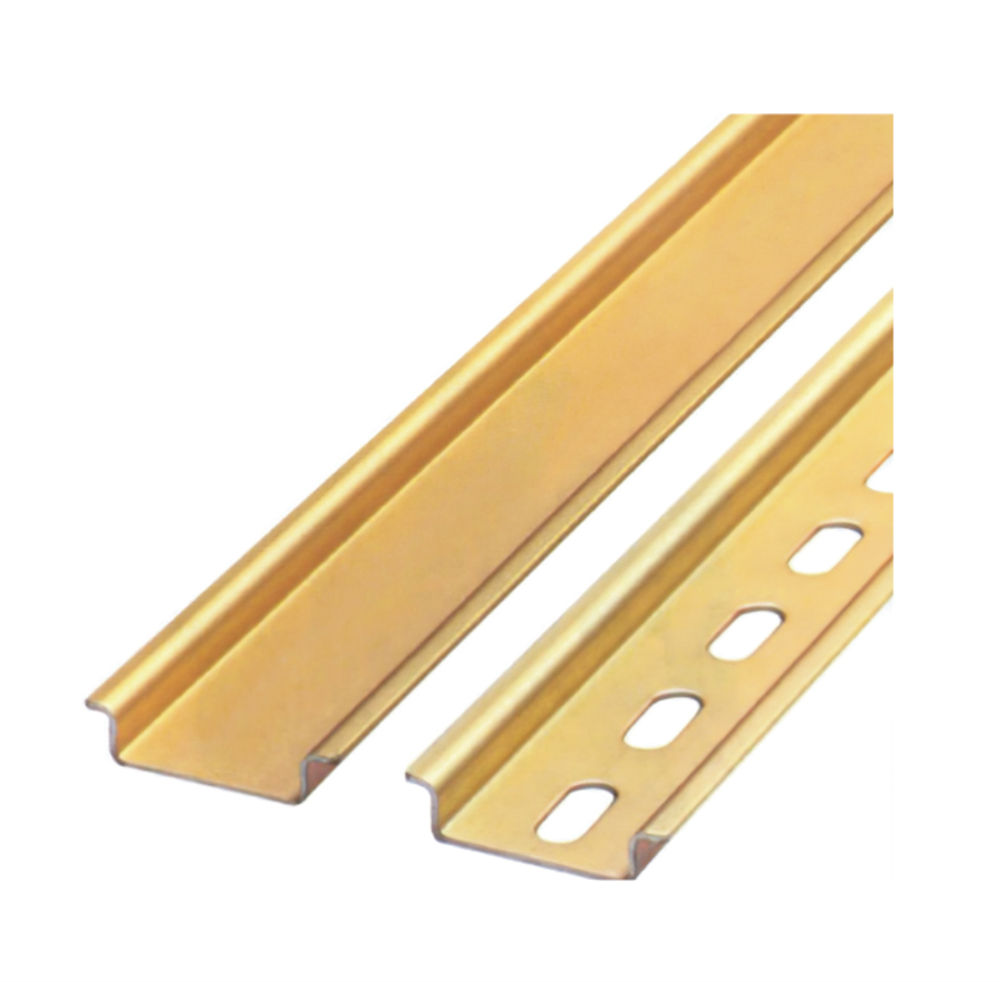

| Model | TS 15/5.5 | TS 35/7.5 |
| Material Code | 2010043 | 2010044 |
| Specification | Non-Perforated/Perforated | Non-Perforated/Perforated |
| Material | Steel, Yellow | Steel, Yellow, Low Profile |
| Supply Length | 2m | 2m |
| Thickness | 1mm | 1mm |
| Requirements | According to EN 50 045-15X5mm | According to EN 50 022-35X7.5mm |

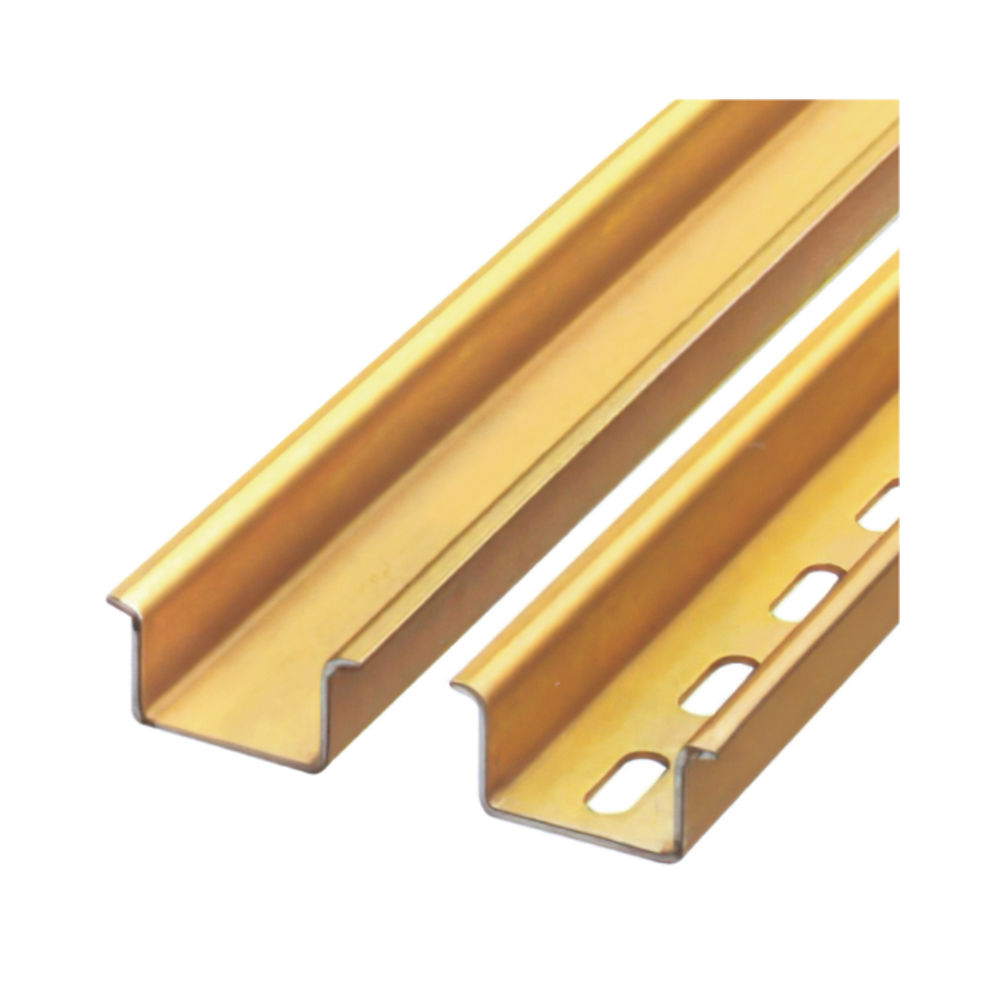

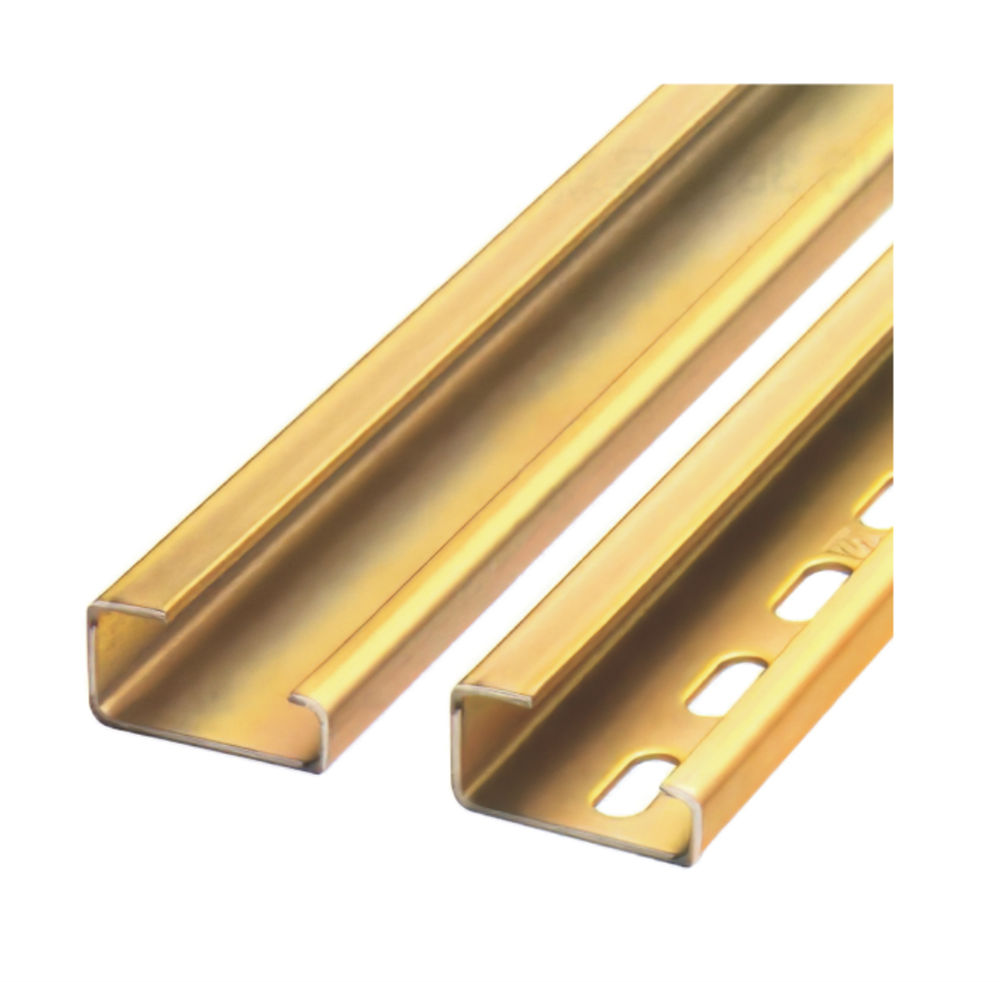

| Model | TS 35/15 | TS 32 |
| Material Code | 2010045 | 2010046 |
| Specification | Non-Perforated/Perforated | Non-Perforated/Perforated |
| Material | Steel, Yellow, High Profile | Steel, Yellow |
| Supply Length | 2m | 2m |
| Thickness | 1.5mm | 1.5mm |
| Requirements | According to EN 50 022-35X15mm | According to EN 50 035-G 32 |

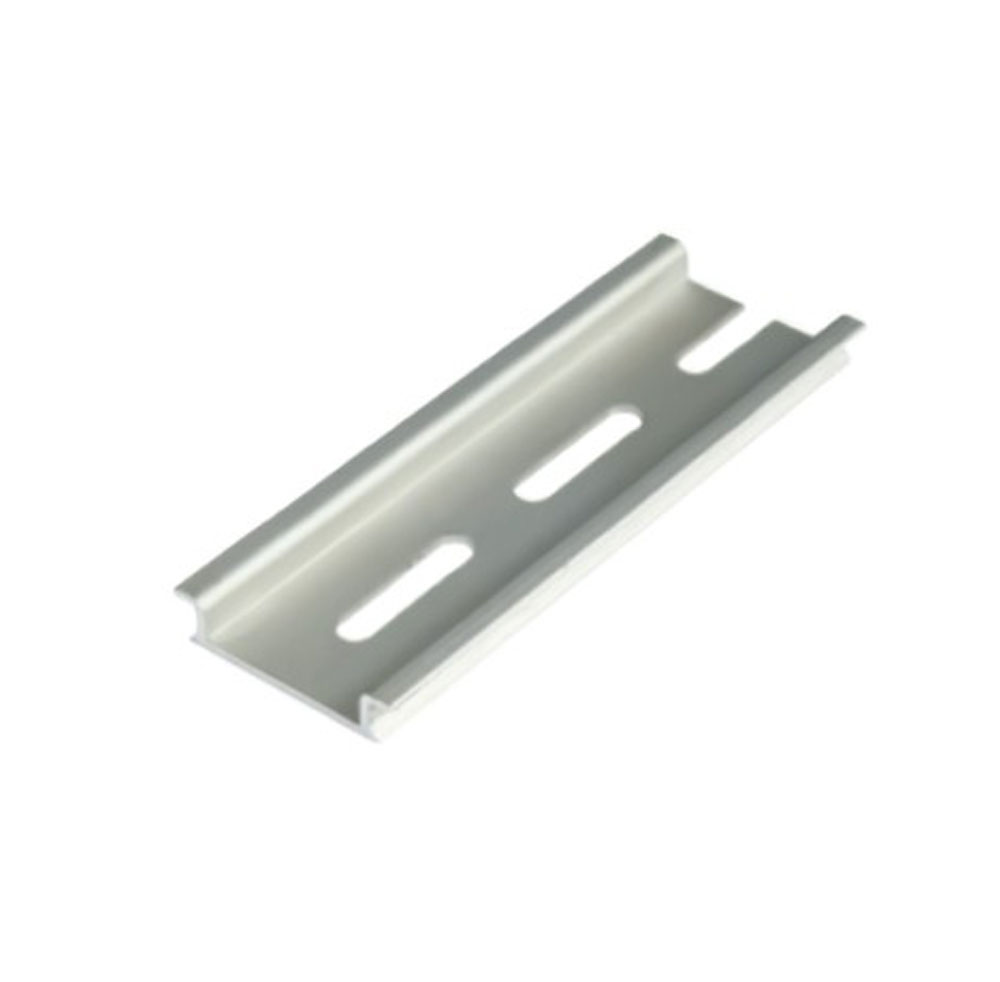

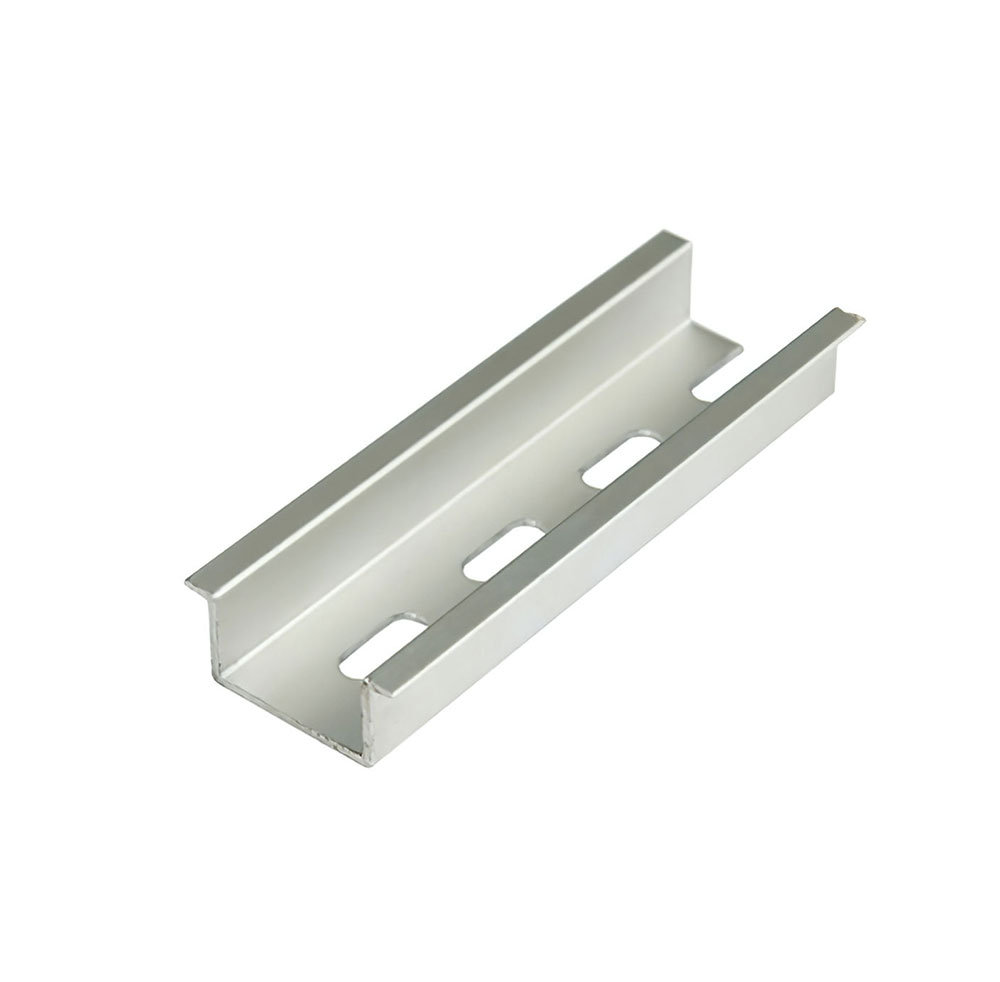

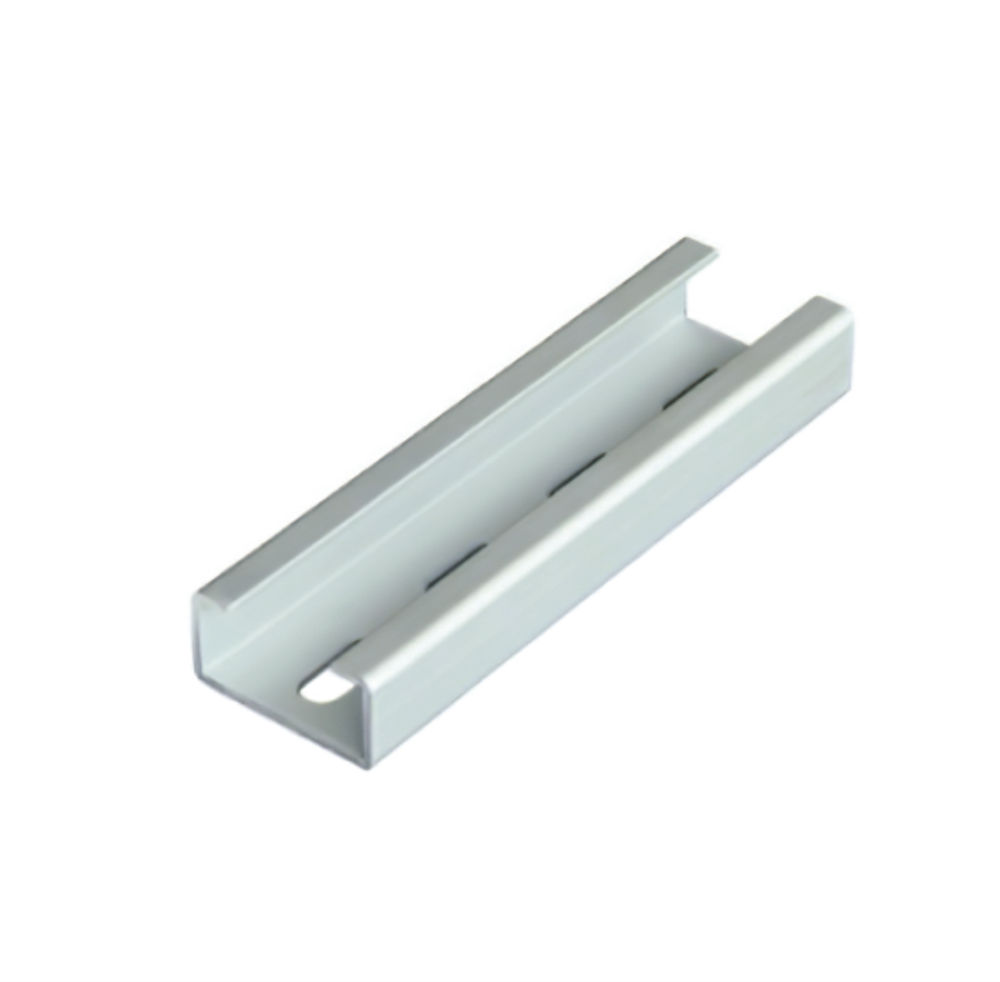

| Model | TSL 35/7.5 | TSL 35/15 | TSL 30/15 | ||
| Material Code | 2010048 | 2010049 | 2010050 | 2010051 | 2010052 |
| Thickness | 1.1mm | 1.5mm | 1.5mm | 1mm | 2mm |
