Filter Material: ABS
Flame Retardant Rating: UL94-V0 (Extra)
IP Rating: IP54
| Model | TK8825.230 | |
| Color | RAL7035 | RAL7032 |
| Material Code | 1012039 | 1012040 |
| Axial Fan | ZF-200B-230 | |
| Rated Operating Voltage (V/Hz) | 230/50/60 | |

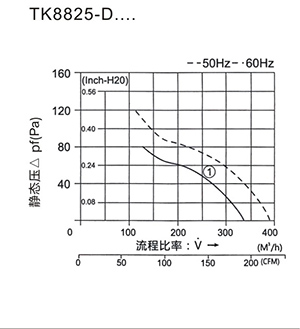

| Airflow, Free Blowing | 485/500m³/h | |
| Axial Flow Fan | Automatic Shaded Pole Motor | |
| Rated Current (A) | 0.36/0.40 | |
| Power (W) | 50/48 | |
| Noise Level (dB) | 63/67 | |
| Operating Temperature Range | -10℃ to +55℃ | |
| Outlet Filter Model | TK8825.300（RAL7035/RAL7032）1012043/1012044 | |
| Model | TK8825.115 | |
| Color | RAL7035 | RAL7032 |
| Material Code | 1012041 | 1012042 |
| Axial Fan | ZF-200B-230 | |
| Rated Operating Voltage (V/Hz) | 230/50/60 | |
| Airflow, Free Blowing | 485/500m³/h | |
| Axial Flow Fan | Automatic Shaded Pole Motor | |
| Rated Current (A) | 0.36/0.40 | |
| Power (W) | 50/48 | |
| Noise Level (dB) | 63/67 | |
| Operating Temperature Range | -10℃ to +55℃ | |
| Outlet Filter Model | TK8825.300（RAL7035/RAL7032）1012043/1012044 | |
Note: Standard with PA66 plastic grill. For special voltage requirements or other grill types, please contact our company.
