PRODUCT

AC axial fan

ZF-92S/B

Description

This fan is composed of an external rotor asynchronous motor, plastic impeller, and other components. It has the unique advantages of ventilation, heat dissipation, and self-cooling, with low motor temperature rise, thus extending the fan's life and reliability.


This fan features a backward-curved impeller, which has characteristics of compact structure, large airflow, high static pressure, low vibration, low noise, and easy installation. It is mainly used in clean workbenches, clean units, indoor duct dust removal, clean air conditioning systems, environmental protection, pollution control, and other refrigeration equipment.


Type parameter
Swipe the table to see more
ModelZF-92S/B-230ZF-92S/B-115
Material Code1015003/0041015005/006
Motor--
BearingSleeve/BallSleeve/Ball
Voltage (V)220/120110/120
Frequency (Hz)50/6050/60
Current (A)0.07/0.060.12/0.10
Power (W)13/1113/11
Speed (RPM)24002400
Airflow (m³/h)51/6351/63
Noise (dB)3737
Weight (g)270270
Dimensions(mm)92x92x25

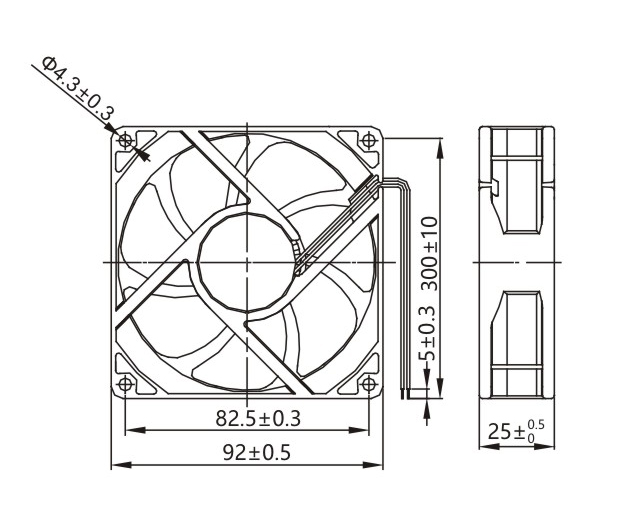

Dimension figure

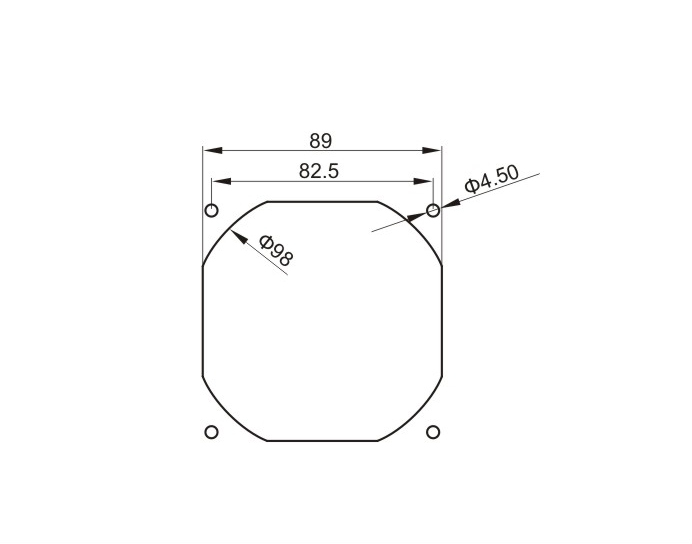

Opening size
